New DLE35AR Gasoline engine 35CC For Model Airplane

New DLE35AR Gasoline engine 35CC For Model Airplane
Part No.: DLE35RA
Manufacturer: DLE

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-New DLE35AR Gasoline engine 35CC For Model Airplane

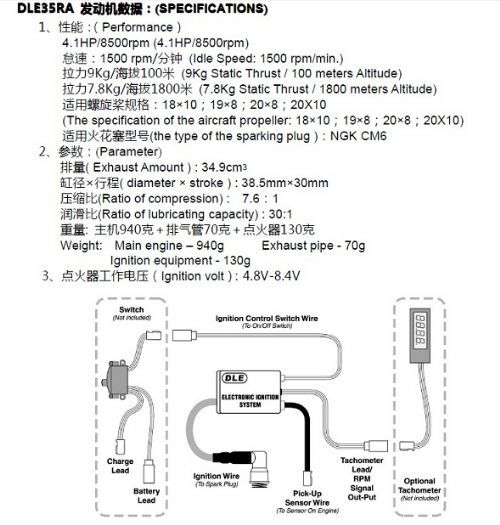

Product Details

4.1HP / 8500RPM
IDLE SPEED : 1500RPM / MIN
 9.0KG STATIC THRUST / 100 METERS ALTITUDE
7.8KG STATIC THRUST / 1800 METERS ALTITUDE
Propeller : 18x10/ 19x8 / 20x8 / 20x10
Sparking Plug  : NGK CM6
Exhaust Amount : 34.9 cm3
Diameter X Stroke :  38.5 x 30mm
Ratio Of Compression  :  7.6: 1
Ratio Of Iubricating Capacity :  30 : 1
Main Engine : 940g  /  Exhaust Pipe : 70g
Ignition Equipment : 130g
Ignition Volt : 4.8 - 8.4v

Item Packing

-DLE35AR X 1

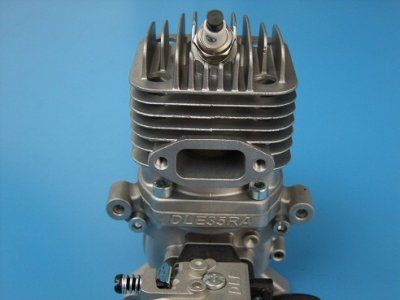

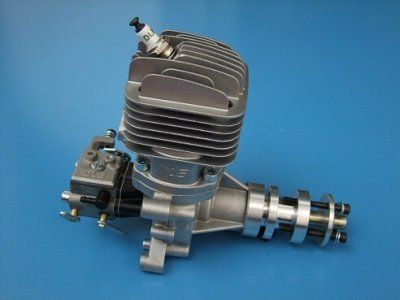

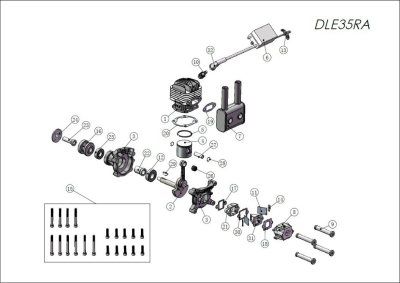

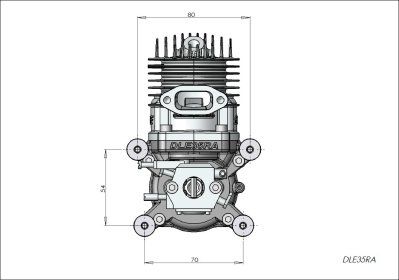

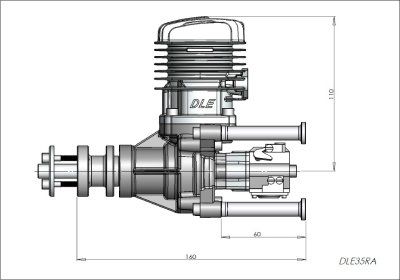

Detailed Images
