Toro SC120A 4000kv Motor Combo for 1/10 Short Course

Toro SC120A 4000kv Motor Combo for 1/10 Short Course
Part No.: SC120A-ComboA
Manufacturer: Imax Charge
Quantity:out of stock

Send to a friend

Your name:
Your e-mail:
Recipient's email:

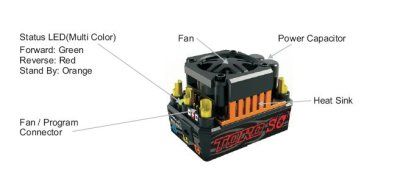

Features

Congratulations and thank you for purchasing TORO, Short Course(SC), high performance
brushless motor electronic speed control. The TORO SC,brushless ESC represents a latest
technologies, providing all the features and robust design qualities.

Product Details

Controls, TORO SC
Rev/Brk/Brk or Fwd/Fwd
Motor Limits, TORO SC
Input Power (Cells)
Brushless KV 6000
Up to 2S(8.4Volt),ideal for 1/10 Short Course
Brushless KV 4000
Up to 3S(12.6Volt),ideal for 1/10 buggies and Short Course
Brushless KV 3000
Up to 4S(16.8Volt),ideal for 1/8 buggies
On Resistance,    Brushless
0.0004 Ohms per phase at 25℃(77°FTrans.Temp
Continuous/Burst Current
120Amp/760Amp
Switching BEC
6V 5Amp
Status LED
1 with 3 color (Red, Green & Orange)
Thermal Overload Protection
Yes
Dimensions(L*W*H)
55*37.6*38.4mm(2.17*1.47*1.51in)
Weight(Without wires)
87g(3.07oz)

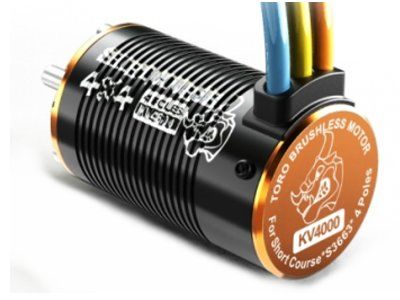

tem Name Toro 4000KV/4P BL Motor for 1/10 Short Course Truck
Sensored /Sensorless sensorless No loading
3.4A
Max power 2000W Max current 155A
KV value 4000KV Resistance (Ω) 0.0064Ω
Poles 4P Max voltage 21V
Size 36*62.5mm Weight 220g
Extend shaft diameter
5mm Length of extend shaft 15.5mm

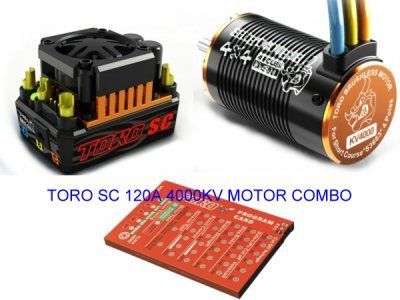

Item Packing

-TORO SC120A X 1
-Toro 4000KV/4P BL Motor  X 1

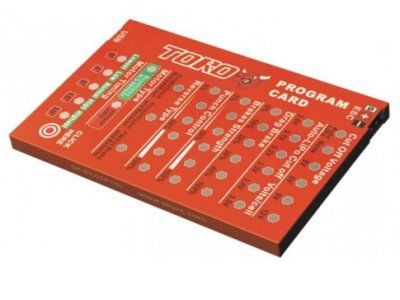

-Program Card  X 1

Detailed Images
