New Hobbywing Xerun120A SCT 4168SD 2250KV Combo

New Hobbywing Xerun120A SCT 4168SD 2250KV Combo
Part No.: COMBO-SCT-PRO-D
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-Suitable for 1/10 and 1/8 scale short course trucks and  1/8th scale buggies.
-Compatible with sensored and sensorless brushless motors,with the best control feelings
-The built-in switching mode BEC has a powerful output to supply all electronic equipments even with 4S Lipo  input.
-Excellent start-up, acceleration and linearity
-Proportional ABS brake function with 5 steps of maximum brake force adjustment,8 steps of drag-brake force adjustment and 4 steps of initial brake force  adjustment .Also compatible with the mechanical disc-brake system.
-Multiple protection features: Low voltage cut-off protection/Over-heat protection / throttle signal loss protection/Motor blocked protection
-Easily programmed with only one button and compatible with pocket-sized Program Card (Optional equipment) and the advanced LCD Program Box (Optional equipment)
-ESC firmware can be updated through and USB adapter on the LCD Program Box (Optional equipment)
-Splash proof  and dust proof

Product Details

-Output: Continuous current 120A, burst current 760A;
-Input: 6-12 cells NiMH/NiCd or 2-4S Lipo;
-BEC Output: 6V/3A (Switching mode)  Note1;
-Resistance: 0.0004 Ohm;
-Motor Supported: Sensored and sensorless brushless motor
-Suitable Brushless Motor:
With 6 cells NiMH/NiCd or 2S Lipo:   KV≤6000;
With 7-9 cells NiMH/NiCd or 3S Lipo:  KV≤4000;
With 10-12 cells NiMH/NiCd or 4S Lipo:  KV≤3000;
-Suitable Car:  1/10th and 1/8th scale buggy /Truggy;
-Size: 53.5mm(L) * 36mm(W) * 36mm(H).
-Weight:  99g;
-Model:Xerun4168SD
-KV:2250KV
-Diameter(mm): 35.8
-Length(mm):72
-Shaft(mm):5mm
-Shaft Length(mm):18
-Weight:280

Item Packing

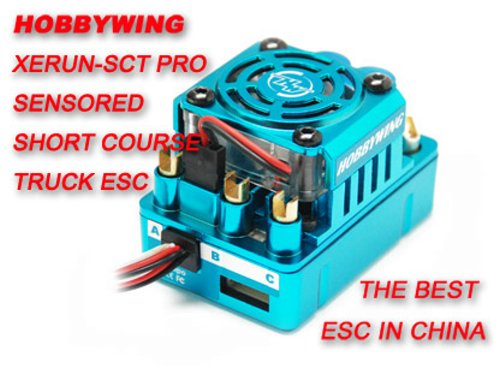

-XERUN 120A-SCT-PRO  ESC V2.1 x 1

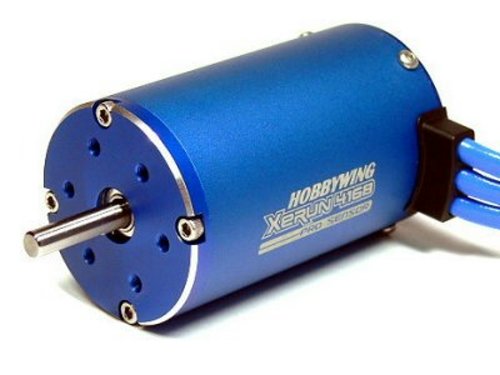

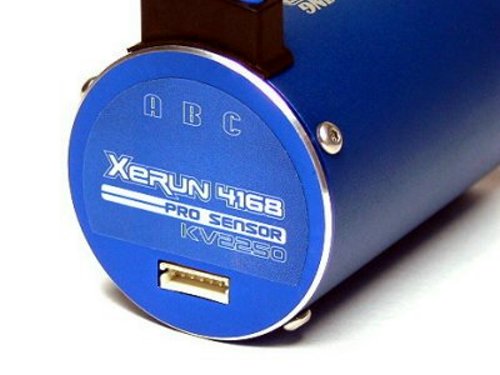

-Hobbywing 4168SD 2250KV X 1

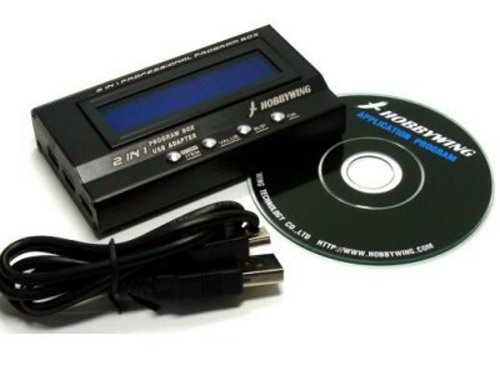

-LCD Program Card For Brushless ESC (Version 2.0) X 1

Detailed Images
