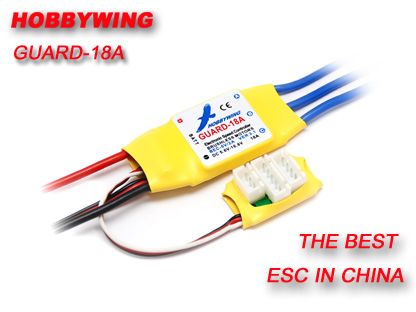

Hobbywing-Guard 18A ESC

Hobbywing-Guard 18A ESC
Part No.: Guard-ESC-18A
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
-Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
-Programmable Items:
Brake Setting: brake enabled / brake disabled.
Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
Start Mode: normal / soft / very soft.
Timing: low / medium / high.
Reset:  reset  all  the programmable items to its default setting.
-Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection

Product Details

- Output:  Continuous 18A, Burst 22A up to 10 Secs.
-Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NiMH battery.
-BEC:  2A / 5V (Linear mode).
-Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
-Size:  45mm (L) * 26mm (W) * 12mm (H).
-Weight:  27g.

Item Packing

-Hobbywing-Guard 18A ESC x1
