Feetech FT1000BL 24V 1000kg Steel Gear Servo All Aluminum Shell Brushless Motor 180 Degree Magnetic Coding Industrial Digital Servo

Feetech FT1000BL 24V 1000kg Steel Gear Servo All Aluminum Shell Brushless Motor 180 Degree Magnetic Coding Industrial Digital Servo
Part No.: FT-1000-C001
Manufacturer: Feetech

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Feetech FT1000BL 24V 1000kg Steel Gear Servo All Aluminum Shell Brushless Motor 180 Degree Magnetic Coding Industrial Digital Servo

Product Details

Model：FT-1000-C001
Product Name：24V 1000KG 180 Degree  Servo
Storage Temperature Range：-40℃～80℃
Operating Temperature Range:-40℃～60℃

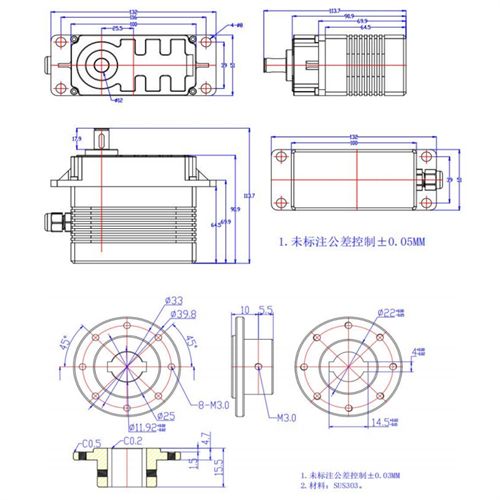

Size：A：100mm B：51mm C: 90.9mm
Weight：1000g±5g
Gear type：Steel
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：Circle（12mm）
Gear Ratio：1/390
Case：Aluminum
Connector wire：43±1CM
Motor：Brushless Motor
Operating Voltage Range：16-28V
Idle current (atstopped)：25mA@24V
No load speed：0.588sec/60°(17RPM)@24V
Runnig current(at no load)：300mA@24V
Peak stall torque：1000kg.cm@ 24V
Rated torque：333kg.cm@24V
Stall current：9.8A@24V
Command si gnal：Pulse width modulation
Control System Type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：180±5°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction：Clockwise (at1500→2000μsec)

Item Packing

24V 1000KG 180 Degree Servo x 1

Detailed Images
