Pixhawk Control Version > Product details
RichenPower Y-16 Agri 16L Hybrid Electric Agricultural Spraying Drone With Water Tank 20 mins Flight Time
| Part No.: | RIC-Y16 |
| Manufacturer: | Feixiang |
Send to a friend
Features
RichenPower Y-16 Agri 16L Hybrid Electric Agricultural Spraying Drone With Water Tank 20 mins Flight Time
Product Details
Total Weight (Excluding fuel) (kg)：22
Max Takeoff Weight (kg)：38
Max Hovering Time (minutes)：18
GNSS+Positioning System Hovering Accuracy (cm)
GNSS* GPS+GLONASS+BEIDOU：Horizental±60 vertical±30 radar modular enabled±10
Dimensions (L x W x H) (mm)：600 x 680 x 700 (Frame arms folded)；1200 x 1200 x 700 (Frame arms unfolded)
Diagonal Wheelbase (mm)：1568
Number of Arms：4
Max Operating Speed (m/s)：7
Max Flying Speed (m/s)：10
Fuel Consumption (liter/ hour)：4
Operating Temperature (°C)：-20 ~ 40
Max Service Ceiling Above Sea Level (m)：2000
Press to Start：yes
Gasoline：Regular92 or E92 or above
FPV Camera：FOV Horizontal 98°Vertical78°Resolution1080x960
Liquid Tank Volume (liter)：Standard 16; Max 17
Liquid Tank Payload (kg)：Standard 16; Max 17
Number of Nozzle：2
Nozzle Model：Teejet XR11001VS or German Agro11001 (Droplet Size 130~250 μm)
Max Spray Flow (liter/min)：1.8 (ISO 005 nozzle), 3.6 (ISO 040 nozzle)
Spray Width (m)：6~10 m ( 2nozzles, at a height of 1.5~3 m above crops)
Terrain Follow Radar：Altitude detection range 1 - 30 m; Stabilization working range 1.5 - 15 m; Max slope in Mountain mode 35°
Pellet Tank Volume (liters)：20
Max. Pellet Spreader Rate (kg/min)：60
Max Takeoff Weight (kg)：38
Max Hovering Time (minutes)：18
GNSS+Positioning System Hovering Accuracy (cm)
GNSS* GPS+GLONASS+BEIDOU：Horizental±60 vertical±30 radar modular enabled±10
Dimensions (L x W x H) (mm)：600 x 680 x 700 (Frame arms folded)；1200 x 1200 x 700 (Frame arms unfolded)
Diagonal Wheelbase (mm)：1568
Number of Arms：4
Max Operating Speed (m/s)：7
Max Flying Speed (m/s)：10
Fuel Consumption (liter/ hour)：4
Operating Temperature (°C)：-20 ~ 40
Max Service Ceiling Above Sea Level (m)：2000
Press to Start：yes
Gasoline：Regular92 or E92 or above
FPV Camera：FOV Horizontal 98°Vertical78°Resolution1080x960
Liquid Tank Volume (liter)：Standard 16; Max 17
Liquid Tank Payload (kg)：Standard 16; Max 17
Number of Nozzle：2
Nozzle Model：Teejet XR11001VS or German Agro11001 (Droplet Size 130~250 μm)
Max Spray Flow (liter/min)：1.8 (ISO 005 nozzle), 3.6 (ISO 040 nozzle)
Spray Width (m)：6~10 m ( 2nozzles, at a height of 1.5~3 m above crops)
Terrain Follow Radar：Altitude detection range 1 - 30 m; Stabilization working range 1.5 - 15 m; Max slope in Mountain mode 35°
Pellet Tank Volume (liters)：20
Max. Pellet Spreader Rate (kg/min)：60
Item Packing
Y-16 Drone x 1

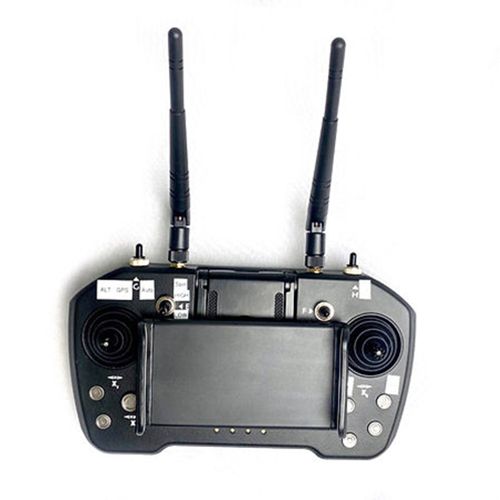

RC Controller x 1

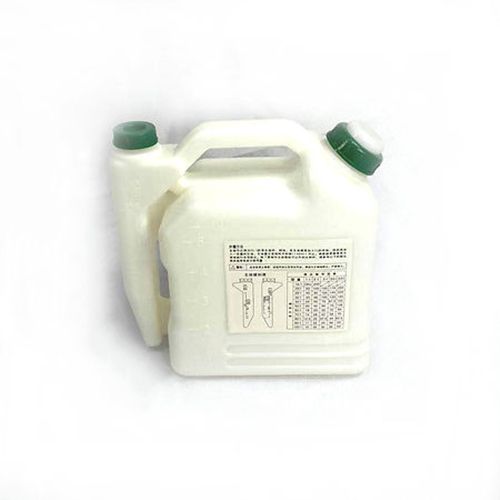

Fuel Mixer x 1
RC Controller x 1
Fuel Mixer x 1
Detailed Images
